French Drain vs Swale: Which One Does Your Yard Need?
A swale moves water across the top of the ground. A French drain moves it underneath. Choosing between them comes down to where your water travels, how much room and slope the lot has, and how the yard has to look and work afterward. Here is how to tell which fits, and when a flat Gulf Coast lot needs both.
- Free on-site assessment
- French drains and yard drainage
- Repairs to existing drains
- Office in League City
Is your water on the surface or under it?
Answer this first and the choice mostly makes itself. If water runs across the lawn in a sheet during a storm and then drains away, it is surface water, and a swale is built for that. If the ground stays spongy for days and puddles seep up from below, the water is in the soil, and a French drain is built for that.
Watch the yard during a hard rain and for a day after it. Where does water enter the lot, which direction does it move, and how long does it stay? Runoff from a neighbor's higher yard or from the patio is surface flow. Soggy strips that persist after the sky clears point to subsurface water.
Many Gulf Coast yards have both kinds, which is why the answer is often "both" rather than one or the other. More on that below.
What is a swale?
A swale is a shallow, grassed channel shaped into the ground so surface water flows along it to an outlet. It has gently sloped sides and a low center line that falls steadily in one direction. It has no pipe and no stone. You mow it like the rest of the lawn, and on a dry day it looks like a slight dip.
Swales are a grading tool. They take advantage of the ground's own shape, adding a defined path where water would otherwise spread out or pool. Our grading and swales page covers how they are laid out and shaped.
What is a French drain?
A French drain is a buried collector: a trench lined with filter fabric, filled with clean stone around a perforated pipe, then covered with soil and sod. Water in the surrounding ground drains into the stone, enters the pipe and flows to an outlet. Once the lawn grows back, almost nothing of it shows except the outlet and a cleanout cap.
Because it works below grade, a French drain can dry out soil that a swale would never reach. The trade-off is that it handles a heavy surface flood poorly on its own, since water has to soak down through the backfill to reach it. Details on materials and depth are on our French drain installation page.
How do a French drain and a swale compare side by side?
The core difference is surface versus subsurface. A swale is a visible channel that moves large amounts of runoff quickly. A French drain is a hidden pipe that pulls water out of the soil steadily. The table sets out the practical differences homeowners usually weigh.
| Factor | Swale | French drain |
|---|---|---|
| Water it handles | Surface runoff during and right after storms | Water in the soil and slow seepage |
| Visibility | A visible dip in the lawn | Hidden once sod recovers; outlet and cleanout show |
| Space needed | Width for gentle side slopes | A narrow trench |
| Slope needed | Continuous fall at the surface along its length | Continuous fall in the pipe, which can be set deeper to find it |
| Heavy downpours | Moves large volumes fast | Limited by how fast water reaches the pipe |
| Typical failure | Low spots that pond; erosion; sediment buildup | Silt clogging the stone or pipe; buried outlet |
| Upkeep | Mowing, occasional reshaping, keeping the outlet open | Clear outlet, periodic flushing through a cleanout |
| Yard use afterward | Dip stays; can affect play areas and fences | Lawn returns to normal use |
| Main cost drivers | Volume of soil moved, sod, outlet work | Footage of pipe and stone, depth, obstacles, outlet |
Neither option wins on every row. A swale is the simpler answer when there is open space and natural fall. A French drain is the better fit for tight side yards, soil that stays wet, and yards where a visible dip is not acceptable.
Which one costs more to install?
It depends on the lot, not the method. A swale avoids pipe and stone, so on open ground with natural fall it is often the lower-cost choice. On a crowded or nearly level lot, the regrading a swale needs can outweigh the cost of a trench. We price both on the free site visit when both are realistic.
For a swale, cost rises with the amount of soil that has to be cut, moved or hauled, the sod to replace, and anything in the path such as fences, trees or a driveway crossing. For a French drain, it rises with the length of pipe, the trench depth, access for equipment, and how far the line has to run to an outlet. We give a written price for your yard instead of a range that might not apply to it.
When does a yard need both a swale and a French drain?
When it has both kinds of water. A common case is a backyard that takes sheet runoff from a neighbor's higher lot during storms and then stays soggy for days afterward. The swale handles the storm flow; the French drain dries the ground between storms.
Three combinations come up often on flat lots:
- Swale with an underdrain. A perforated pipe runs in stone beneath the swale's center line. Surface water moves along the swale while the pipe keeps the bottom from staying wet.
- Swale at the fence, French drain near the house. The swale intercepts runoff entering from the back or side, and the drain protects the soil beside the slab.
- Swale feeding a catch basin. The swale gathers water to one point where a catch basin drops it into a buried pipe, useful when the outlet is far away or higher than the swale.
In every combination, both features should end at the same well-chosen outlet, sized for the combined water.
Are channel drains or regrading better than either?
Sometimes. If the problem is water running off a driveway or patio, a grated channel drain set in the concrete catches it at the edge where neither a swale nor a French drain would. If the whole yard simply tilts toward the house, regrading it to fall away may fix the problem without a channel or pipe at all.
Gutters deserve a look before any of these. A single roof section can dump a large share of the water in a side yard. Piping downspouts underground in solid downspout drain lines can shrink the problem enough that a small swale or short drain finishes the job.

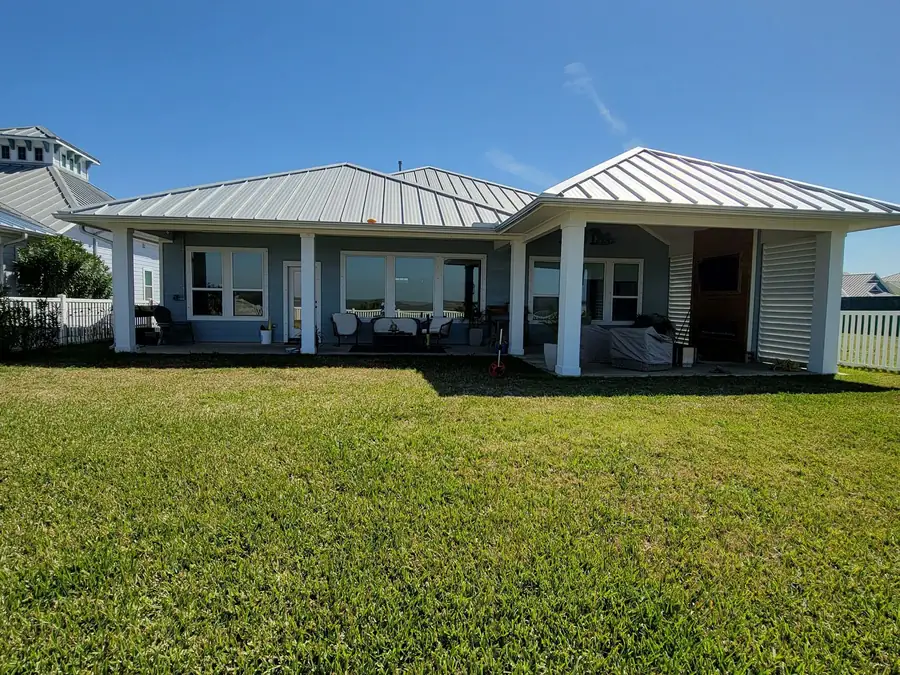

How do Gulf Coast soil and slope change the choice?
Flat ground and slow-draining clay push many lots here toward a buried drain or a combined system. Lake Charles clay, the most extensive land soil in Galveston County and in Brazoria County by federal soil survey acreage, sits on coastal plains with slopes mostly under 1 percent. A swale needs fall, and much of this land has very little.
The clay also behaves differently wet and dry. The U.S. soil series description for Lake Charles notes that water enters rapidly when the soil is cracked but very slowly once it is wet and the cracks close. Dry-season cracks reach 1/2 to 2 inches wide and a foot or more deep. So the first storm after a dry spell may soak in, while the next one runs off. A swale has to be sized for the wet-soil case.
Rain volume matters too. The National Weather Service's 1991 to 2020 normal for Houston Hobby is 55.62 inches a year, and during Harvey in 2017 a gauge south of League City recorded 52.87 inches. Swales are good at moving that kind of volume, provided they have room and fall.
Lot layout is the last factor. The residential building code that Texas cities use, the International Residential Code, asks in section R401.3 for the grade to fall at least 6 inches in the first 10 feet from the foundation. Where lot lines or walls make that impossible, it calls for drains or swales instead. Tight side yards in newer subdivisions often fall in that exception.
What rules apply to where the water goes?
Whichever you choose, it has to empty somewhere legal. Texas Water Code section 11.086 bars diverting or impounding the natural flow of surface water in a way that damages another person's property, and lets the injured owner recover damages. A swale that concentrates runoff onto a neighbor's lot can create exactly that problem.
Beyond state law, deed-restricted subdivisions commonly require approval before grading changes, and work in a city right-of-way, such as a curb outlet, may need the city's sign-off. We check those rules for your address before we design the system, so the plan you approve is one you can actually build.
How do we decide between a French drain and a swale on your lot?
On a free on-site visit we look at where water enters and collects, measure the fall from the wet area to each possible outlet, and check the width available. If there is room and fall, a swale may be the simpler choice. If the soil stays wet, the space is tight or the lot is flat, a French drain or a combination usually wins.
You get a written plan and price for the option that fits, and for the alternative when both are realistic. If you already know the area well, our French drain installation overview explains our process from start to finish, or you can go straight to requesting a free quote.
Drainage services
French Drain Installation
A perforated pipe in a gravel trench that collects water below the surface and carries it to a safe outlet.
Learn more →French Drain Repair
Clogged, crushed or silted-up drains diagnosed and repaired, or rebuilt when the old one cannot be saved.
Learn more →Yard Drainage
Standing water, soggy low spots and runoff toward the house, solved with the right mix of drains and grading.
Learn more →Catch Basins
A grated box set at the low spot that catches surface water and sends it into an underground pipe to the outlet.
Learn more →Channel and Trench Drains
A long grated channel across a driveway, patio or garage entry that stops sheet runoff before it reaches the house.
Learn more →Downspout Drain Lines
Solid underground pipe that carries roof water from each downspout to the street or an outlet instead of the foundation.
Learn more →Sump Pumps
For lots with no downhill exit: a basin and pump that lift collected water up and out to where it can drain.
Learn more →Grading and Swales
Reshaping the ground, or cutting a shallow channel, so surface water flows away from the house on its own.
Learn more →
French drain vs swale questions
Which costs less, a French drain or a swale?
On an open lot with enough slope, a swale usually costs less because it is shaped soil and sod with no pipe or stone. The balance flips on a cramped or nearly flat lot, where a swale may need so much regrading, or so long a path to an outlet, that a buried drain is the simpler job.
Can a swale fit in a narrow side yard between two houses?

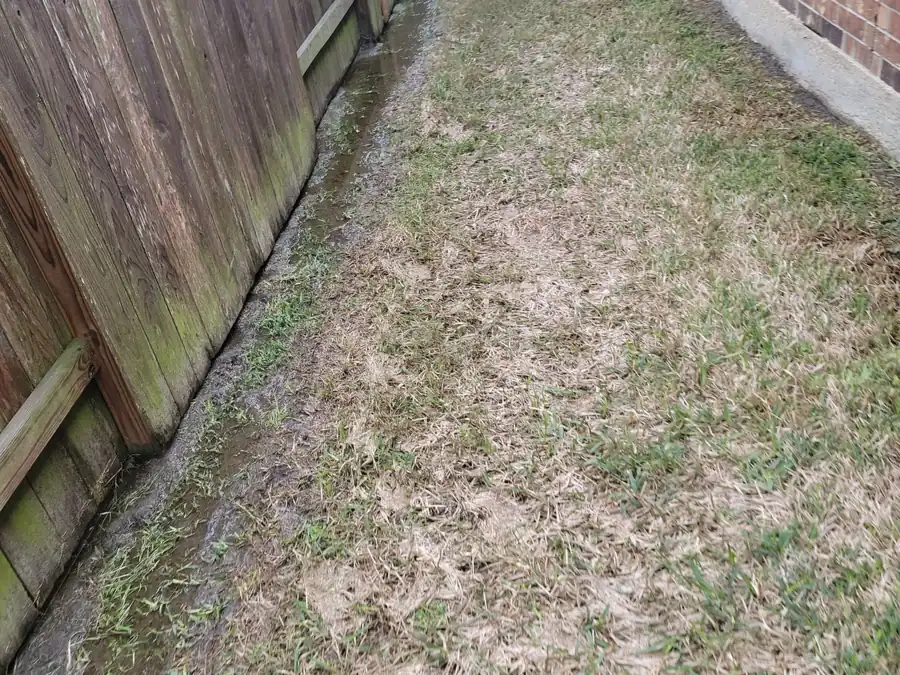

Often only a very shallow one. A swale needs width for gently sloped sides, and a side yard of a few feet leaves little room once fence posts and the slab edge are accounted for. Narrow side yards usually get a French drain or a channel with a grate, sometimes with a shallow swale shaped over it.
Will a swale hold standing water and draw mosquitoes?
A swale with steady fall to an outlet drains out after the rain ends. One cut too flat, or with a low spot or blocked exit, holds water and can breed mosquitoes. On very flat lots that risk is the main argument for putting a perforated pipe under the swale bottom.
Can a French drain be built underneath a swale?
Yes, and on flat clay lots it is one of the more reliable designs. The swale carries storm runoff on the surface, while a perforated pipe in stone below its low line collects the water that soaks in and the trickle left after the storm, so the swale bottom does not stay soggy.
Does a swale need approval from the city or HOA?
Many deed-restricted neighborhoods require approval for grading changes, and a swale that sends water into the street or a ditch can involve city rules about the right-of-way. Texas Water Code section 11.086 also bars redirecting surface water so it damages a neighbor's property, so the outlet must be planned.
Which lasts longer, a swale or a French drain?
Both can work for many years with care. A swale's weak point is its surface: sediment, settling and erosion change its shape, so it needs occasional reshaping. A French drain's weak point is clogging, so it depends on fabric, clean stone and a way to flush it. Neither is maintenance-free.
Can I mow over a swale?
Yes. A residential swale is normally a grassed, gently sloped dip that you mow like the rest of the lawn. Keeping the sides gentle is what makes that possible. A steep-sided ditch is harder to mow and more likely to erode, which is why we shape swales wide and shallow where space allows.
